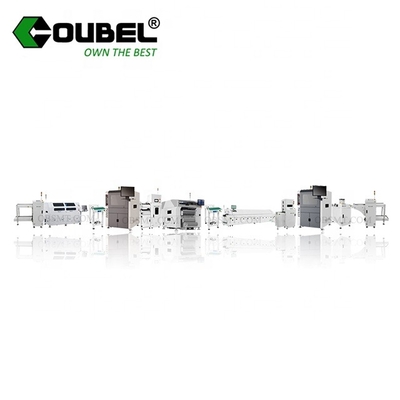

Small SMT Line Whole Line Equipment LED Lamp Production SMT Line For Sale HS-0802-LF

1.0 Units
MOQ
Small SMT Line Whole Line Equipment LED Lamp Production SMT Line For Sale HS-0802-LF
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC
Model Number: HS-0802-LF
Warranty: 1 Year
Quantities of heating zones: Top8 /bottom8
Length of heating zones: 3500mm
Quantities of cooling zones: Up 2 ,Down 2
Max width of PCB: 400mm
Width of conveyor: 50~400mm
Conveyor speed: 0~2000mm/Min
Dimensions(mm): 5400*1370*1555mm
Weight (Approx.): 2200kg
PCB temp. Deviation: ±1.5℃
Heating time: Approx. 20min
After Warranty Service: Video technical support, Online support
Local Service Location: None
After-sales Service Provided: Video technical support, Field installation, commissioning and training, Online support
기본 정보
Model Number: HS-0802-LF
결제 및 배송 조건
Packaging Details: Plywood case, for export
Supply Ability: 200 Unit/Units per Month
제품 설명
Product Description

Small SMT Line SMT Whole Line Equipment LED Lamp Production Line For Sale

Features:


PCB Magazine Loader Unloader:

1.Applies to the PLC+touch screen controller.

2.Special gas circuit design to ensure no PCB breakage.

3.It can hold 1magazine, small footprint.

4.With SMEMA signal.


Solder Paste Printer:

1.High positional accuracy, repeated positioning accuracy ±0.01mm; printing accuracy 0.025mm.

2.PLC+PC with Windows XP control system.

3.Automatic PCB calibration, squeegee pressure adjustable, automatic printing and stencil cleaning.

4.Unique design to improve the lifespan of squeegee blade.


PCB Conveyor:

1.Precise M-screw,manual guide rail width adjustable,which ensures two guide rails move smoothly.

2.Imported round special belt, and the patent tracks ,decrease the PCB drop problem.

3.Stucture is made by the aluminum alloy,more stable and longer lifespan.

4.With SMEMA.


PCB Buffer:

1.PLC + LED touch screen control, easy to operate.

2.FIFO, LIFO and Pass mode.

3.Smooth and precise width adjustment (leadscrew).


8 Zones Reflow Oven:

1.Lenovo PC , windows 7 operation system, Chinese-English interface screen.

2.Guide rail is through the special heat treatment, it’s hard to out of shape.

3.Siemens PLC control, more durable and stable


PCB Reject Conveyor:

1.Reject,inspect and pass through modes provided.

2.Smooth and parallel width adjustment.

3.Single or dual rails are customized.


PCB Magazine Loader Unloader
Dimensions
850*765*1250mm
Magazine size
355*320*563mm
Dimensions
PCB size
50*50-330*250mm
Magazine quantity
1
Air pressure
4-6bar,10L/min max
Weight
Approx.120Kgs

Solder Paste Printer
PCB Size
50*50-400*340mm
Cleaning System
Dry, Wet, Vacumm
Printing Accuracy
±0.025mm
Air Pressure
4.5 ~ 6Kg/cm2
Power Supply
220±10%, 50/60HZ
Dimension(mm)
1240*1450*1510mm


PCB Conveyor
Dimensions(mm)
Length×640×910
PCB Width
50-350(mm)
PCB Direction
L-R or R-L
Speed
0-1000(mm)/Min
Communication Plug
SMEMA Signal
Platform Material
ESD Rubber Mat


PCB Buffer
Dimensions
800*910*1600mm
PCB size
50*50-330*250mm
Maxium load
1.5KG/pc
PCB capacity
12pcs or customized
Cycle time
about 10s
Weight
Approx.260Kgs


Reflow Oven
Heating zones
Top8 /bottom8
Max width of PCB
400mm
Width of conveyor
50~400mm
Conveyor speed
0～2000mm/Min
Heating time
Approx. 20min
Dimensions(mm)
5400*1370*1555

PCB Reject Conveyor
Dimensions
Length*665*900mm
Conveyor speed
0.5-20M/min
Power
Max.100VA
NG PCB quantity
3-10pcs
Conveyor direction
L-R or R-L (optional)
Weight
Approx.75KGS
Need more details about the SMT Line,please check here.
SMT Line Scheme
PCB Magazine Loader-Solder Paste Printer-PCB Conveyor-AOI-NG OK Buffer-Pick And Place Machine- PCB Conveyor-Reflow Oven-Vertical Buffer-AOI-PCB Reject Conveyor-PCB Magazine Unloader

(All conveyor can choose chain or belt conveyor,and you can send your pcb to us,we can provide Free Proofing service)
Packing & Delivery

Packing Details :Plywood case, for export!
Port:Shenzhen
Delivery Details : 25-30days

Our Company

Oubel supplies the dispensing and PCB conformal coating machine, SMT &DIP machines that is supported by a global service network ,we offer customer-inspired solutions in a range of industries.OUBEL is dedicated to making quality products that help our clients operate more efficiently and effectively. Oubel is guided by the principles of fairness to our suppliers, associates, clients and employees, and helping them achieve to the best of their potential.



Oubel is highly regarded for its world-class quality products, produced with the flexibility and nimbleness demanded by its customers all over the world.
Under your witness, we will continue to work hard, strive for innovative research and development of more advanced equipment.

Company
Studio

Over the years, we have developed core competencies that warrant us to be the global leader in the industry: Customization , Short lead time , Flexibility , Customer Satisfaction , Premium Quality Products , Value For Money , International Distribution Network , Extensive Service Support.To maintain customer satisfaction through timely delivery of reliable products and servicesTo maintain an efficient and quality driven work environment with an emphasis on constant Research and Development to provide technologically superior products.To attract and retain quality personnel through an equitable reward system, constant training and upgrading of skills as well as career enhancement opportunities

Core Competencies
Corporate Objectives
Welcome To Our Factory!Welcome To OUBEL!
Customer Photo



Since its establishment, the company has established good business relations with traders from all over the world and won the favor of many customers with our high-quality products and services



When the customer comes to the factory to watch the production and operation of the machine, our team carefully explains the operation process of the machine for him, so that the customer has some understanding of our production process and can rest assured of our products.

Our Service

Respond in time

Your inquiry about our products and price will be replied within 24 hours

Cheap and fine

We provide you with high quality materials and competitive prices

Good communication

Well-trained and experienced staffs to answer your enquires in fluent English

High efficiency

Complete the production shipment in the shortest time

High quality

Strict QC before shipping the products,Responsible for the quality of all products

Wide range of services

OEM & ODM services offered,Meet all your needs

FAQ:
Q: What we can do for you?
A: We provide SMT&DIP machine,we can aslo provide Production line scheme,such as Whole coating line,SMT line,DIP line and so on.Professional Technical Support and Service.

Q: What is your delivery date?
A: The delivery date is about 25-30 days after receipt of deposit.

Q: What is your payment terms?
A: 30% deposit and 70% balance before shipment.

Q:This machine is easy to use ? if I have no experience, I can also operate it well ?
A:Yes, our machine is designed to use easily, Normally it will take you 1 day to learn how to operate, if you are a technician, it will much faster to learn.

Q:Do you provide the user manual and operating videos to support us ?
A:We will provide the English user manual for free , and the operation video is available.Our software is all English.

Q: If we come to your factory, you will provide the free training ?
A:Yes, warmly welcome you to visit our factory, we will arrange the free training for you.

Q:What service you can provide when we have some problem during the operation?
A:We can invite our engineers to your company for guidance, but you are responsible for the air tickets and accommodation,we can also provide remote guidance

Q:What is the payment way ?
A:We accept the payment terms: T/T, WesterUnion, Moneygram, Paypal, etc.
