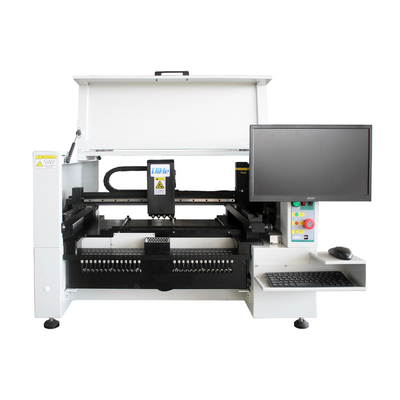

P & P MACHINE HOT SALE PLS CLICK PICTURE DIRECTLY FOR DETAIL!!! |
|
| Model | TVM925 |
| Max applicable PCB size | 20*20mm-310*360mm |
| XY axis moving range | 375*620mm |
| Z axis moving range | 16mm |
| Placement head quantity | 4 |
| Mounting speed | Vision off:9000CPH |
| Vision on:7000CPH | |
| Applicable components | Smallest size:0402 |
| Biggest size:16*16mm | |
| Maximum height:5mm | |
| Motor control scheme | Closed-loop stepper motor |
| Feeder | 38 (YAMAHA feeder is available) |
| Visual camera | 1 pcb inspcetion camera, 1 flying camera |
| Power supply | 220V or 110V |
| Average working power | 350W |
| Machine dimension | 845*865*650mm |
| Net weight | 130kg |
| Gross weight | 175kg |
| Packing size | 1000*990*850mm |
| Volume | 0.84CBM |
| Warranty | 1 year |
1. Vision system: one pcb inspection camera and one flying camera.
2. Four placement heads can pick up components at one time.
3. 38 feeder slots, Yamaha standard feeder is available.
4. Built-in computer mainboard, the monitor, key board and mouse will ship with machine.
5. Video tutorials make you operate machine easily
6. Free to upgrade software and provide technology support for life.
|
1. Q: How many nozzles do you supply? |
|
A: The TVM802 has two nozzle-heads, we supply 4 nozzles. The TVM925 has 4 nozzle-heads, we supply 6 nozzles. The QM61 has 6 nozzle-heads, we supply 8 nozzles. |
|
2. Q: Which language is the software? Do you provide software updates? |
|
A: English or Chinese. Free to upgrade software for lifetime. |
|
3. Q: This is the first time I use this kind of machine, is it easy to operate? |
|
A: Yes. There are English manual and guide video that show you how to use machine. If there is any doubt in the process of operating the machine, please feel free contact us. We also provide overseas on-site service. |
|
4. Q: Can we customize the machine? |
| A: Of course. All of our machines can be customized. |
|
5. How about the warranty? |
|
A: We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period. |
|
Company |
Yueqing Qihe Electrical Technology Co.,Ltd. |
|
Address |
No.222 Latitude Five Road, Economic Development Zone,Yueqing, Zhejiang,China |
|
Tel |
+86 0577 62058872 |
|
Fax |
+86 0577 89736269 |
|
Zip code |
325600 |
|
Website |
www.qhsmt.com |
| 담당자 : | Hans Cheng |
|---|
