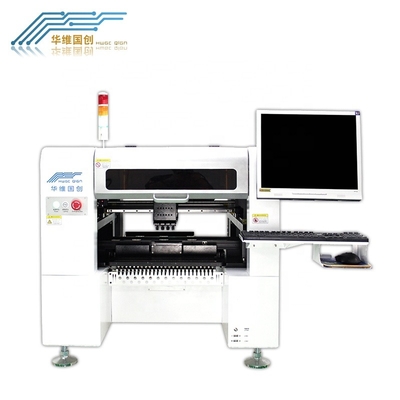

smt SMT Assembly Production Line Small SMD Desktop Transfer Machine Capacitor Placement Machine Automatic PCB Assembly Production Line 0201 SMT

1.0 Sets
MOQ
smt SMT Assembly Production Line Small SMD Desktop Transfer Machine Capacitor Placement Machine Automatic PCB Assembly Production Line 0201 SMT
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Gearbox, Motor, Gear
Model Number: HW-T4-44FX/50F
Warranty: 1 Year, One Year
Name: Led Pick
Product name: Place Machine\ LED Mounter\LED Assembly Machine
Application: SMT Assembly Production Line
Usage: SMD LED SMT
Type: Automatic
Applicable Components: LED Chip
After Warranty Service: Video technical support, Online support
Local Service Location: None
After-sales Service Provided: Video technical support, Online support
기본 정보
Model Number: HW-T4-44FX/50F
결제 및 배송 조건
Supply Ability: 5 Set/Sets per Day
제품 설명
Specification
Number of feeders
44/50
Number of IC tray
48
Number of cameras
6
Number of heads
4
Average power
400W
Automatic board
Three-stage track
Guide
Screw guide
Maximum mounting speed
9000 Pcs/h
Average mounting speed of actual mounting resistance
8000 Pcs/h
Maximum travel scope in Z axis
20mm
Maximum circuit board area
(44FX)350*280mm/(50F)350*190mm
Positioning precision
0.01mm
The buffer range of suction nozzle
4.5mm
Weight
210KG
Dimension
900*1140*900mm
Power supply
220V, 50/60Hz
Compressed air
0.5-0.6Mpa
Drive motor
Panasonic servo motor
Motion drive system
Panasonic high-speed DSP drive
Recognition mode
Simultaneous recognition of four heads
Vacuum source of suction nozzle
High-speed on-off vacuum generator with vacuum breaker



Operating system
Full-automatic chip mounter operating system operating system.
Independently developed by us based on Windows operating system
Supports windows xp, win7
Element angle
0-360°synchronous rotation during movement
X/Y operation mode
Intelligent curve of the linear acceleration and deceleration linkage
MARK point positioning
Full-automatic (the MARK point can be adjust at will)
Intelligent alarm
Automatic correction, automatic filling, feeding shortage alarm


Plate entering mode
Automatic connection from left to right in single sections
Automatic PCB transfer positioning/plunger positioning, manual plate feeding
Visual display
17-inch industrial control display, 4:3, resolution: 1280 x1024

Number of recognition cameras
One Mark recognition camera, four quick-recognition cameras
One precise-recognition camera.


Adaptive mounting scope
Adaptive to 0201 0402, 0603, 0805, 1206, diode, audion, SOT, QFP
Within 40*40mm and the pin distance ≥0.3mm (0.5mm center distance) and BGA.
