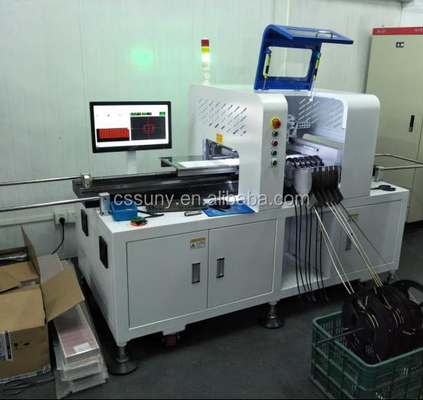

Item:SMT led pick and place machine, 6 heads pick and place machine
Model:SUNY-AS619
Specification:
No | Spec |
| Technical |
Board Parameter | Board size | Maximum | (L)1200 x (W)300mm |
Minimum | (L)30 x (W)30mm | ||
Location method | Left/down side fix base,right/upside movable fix base | ||
Transfer direction | Right→left | ||
Mounting Parameter | Speed | Maximum speed | 48,000 CPH |
Average speed | 30,000~36,000 CPH | ||
Distance between components | 26mm (maximum speed) | ||
Mounting height |
| 8.5mm | |
Mounting Precision | CHIP-LED | ±0.03mm | |
Components Type
| Resistance(0402-1206), capacitance,IC,Diode,LED lamp | ||
Recognition System | Camera+SMD location and inspection system | ||
Head | 6 heads | ||
Feeder number | 12x 8mm/12mm/16mm | ||
System Parameter | Operation system | Industrial-grade computer | |
Operation software |
| SUNY SOFTWARE | |
X axis control | Panasonic AC servo motor | ||
Y axis control | Panasonic AC servo motor | ||
Z axis control | Panasonic AC servo motor | ||
θ control | SAMSR motor | ||
Production Parameter | Power | AC220 V | |
Rated Power | 700W | ||
Air pressure | ≥0.5 Mpa | ||
Dimension | (L)2000 x (W)1000 x (H)1140 mm | ||
Weight | 700KG | ||
