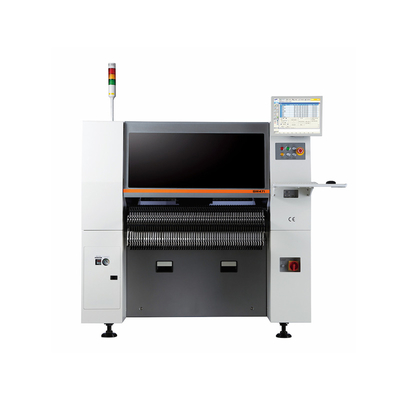

High Speed led chip mounter/smt led pick and place machine HANWHA SM481
Advanced High Speed Flexible Mounter
As a general component placer whose vision system is reinforced based on the platform of the SM471 high speed chip shooter and whose chip placement speed is the highest among the same class component placers, the SM481 realized a chip placement speed of 39,000 CPH, the highest among the same class component placers, by applying a head with one gantry and ten spindles as well as new flying vision and by maximizing the pickup and placement motion.
In addition, it is applicable up to 0402 chips and 42mm ICs. It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is designed to be compatible with SM series pneumatic feeders, it maximizes the customer’s operational convenience.
39,000 CPH(Optimum)
1 Gantry x 10 Spindles/Head
Applicable part: 0402 ~ 42mm(H 15mm)
Applicable PCB: 460(L) x 400(W)(Standard)
Max. 740(L) x 460(W)(Option)
High speed, high precision and electrically driven feeder
- Automatic pick-up position alignment function
- Compatible with SM pneumatic feeders
New vacuum system and optimized pickup/placement motion SMART Feeder
- World’s first Auto Splicing and Auto Loading
For SMT factory setup,we can do for you:
1. We provide fulL SMT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT factory setup
5. We can solve any question about SMT
company introduction:
ETA is the leading SMT factory solution provider in China,offering professional SMT factory building advice and service.We have 20 year experience about SMT factories,offering full solutions for global clients with our great advantaged sources.Our core technology team members are well experienced in SMT filed, learning experience from top international chip mounters meanwhile increasing independent research and development. Currently ETA SMT equipment is representative of high quality , has maintained absolute leading technology in the industry.
Over the years the company has been committed to improving technology, quality and perfect service. ETA makes a positive contribution to international standard,the annual total capacity of 1200 sets, passed the ISO9001: 2000, ISO14000, CE, UL, RoHS and other certifications. Full implementation of the IPD process, reliable design and testing throughout the entire product life cycle.ETA’s continued investment in research and development and great contribution has been unanimously recognized in the field. By the end of 2012, ETA has declared more than 30 patents and software copyrights (including four invention patents), and actively involved in a number of national and industry standards. ETA provides more advanced products and fast technical support for global customers, at home and abroad.
Please leave a message or send EML to me ,I will reply at my earliest. Thanks~
