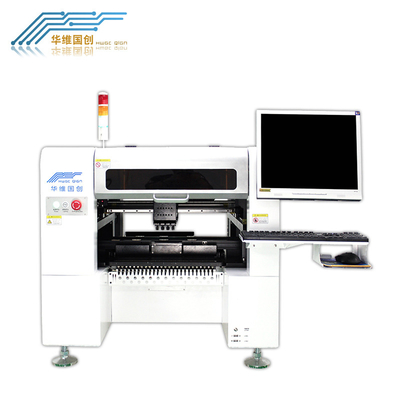

| Model | HW-T4-44/50F |
| Number of Placement Heads | 4(high-accuracy) |
| Number of IC Trays | 48 |
| Number of Feeders | 44/50(subject to 8mm feeder) |
| Positioning Accuracy | 0.01mm |
| Max mounting capability | Vision on: 6000pcs/h |
| Vision off: 7000pcs/h | |
| Repeated Mounting Accuracy | 0.02mm |
| Applicable component | Smallest size: 0201 |
| Largest size: 22*22mm | |
| Max height: 10mm | |
| Visual camera | 4CCD cameras & 1 HD CCD camera & 1MARK camera |
| Power supply | 220V 50/60HZ |
| Net weight | 210kg |
| Gross Weight | 260kg |
| Machine Dimension | 900*1140*900mm |
Q: How is the training?
A: After buying our machines, your engineers can go to our company or it is so easy to operate. We have English user manual and guide video to teach you how to use the machine. The user manual will come with the machine together.
Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A: All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own paten.
Q:The Warranty of the machine?
A: One year, then the parts will be free for the buyer in the warranty. If there is any doubt in the process of operating the machine, pls feel free contact us. We will help you in time.
Q:English version for these machines?
A: Yes, and we will reqularly update the software for customers.
