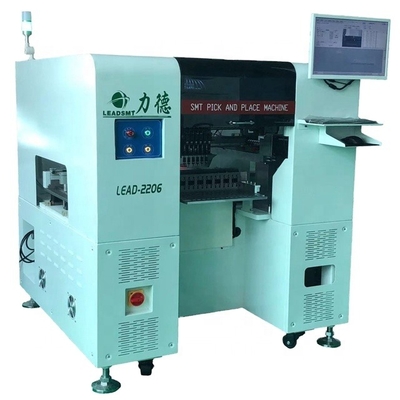

Full automatic Pick and place machine
We have ten years experience in SMT production line machine , and we focus on led industry for four years. Ater very stable performance for 4 heads of pick and place machine. Our R&D study and develop many new models for pick and place machine with more high speed, better performance in led lights, update visual positioning to meet high demands for customer.
If you are interested in our machines, please contact me directly:
Miss Alice jiang : +86 - 139 2458 9253 whatsapp/wechat same no
Wechat id is smt9171
QQ: 1509191732
|
Model |
LEAD-2206 |
|
Working Type |
Online, Fully automatic |
|
Mounting Heads |
6 Pieces |
|
Stable practical Speed |
26000cph (Tube) |
|
Max Speed |
32000cph |
|
Position method |
±0.005mm |
|
Max moving range(X,Y) |
X axis 1220mm, Y axis 430mm |
|
Z axis max moving range |
10mm |
|
Position method |
Vision Mark position |
|
Max Mounting PCB size |
1200mm*300mm |
|
Mounting components type |
All above 0603 leds like 0603, 1206, 2014, 3014, 2835, 3528, 5050, 5630, 5730, 7070etc and resistors, IC, capacitors with the same size . |
|
No. of Feeders |
10 Pieces |
|
Feeder sizes available |
8mm,12mm,16mm, 24mm ,32mm |
|
Operation System |
Windows XP(English version) |
|
Programming Method |
Computer graphical programming+ Visual Camera position |
|
PCB Width adjust |
By electrical Button control |
|
Negative pressure |
Vacuum pump system equipped |
|
Weight |
Approx 1000kg |
|
Power Supply |
Single Phrase ,220V, 50Hz,1.8KW |
|
Dimensions |
1930MM(L)*1180MM(W)*1450MM(H) |
1.The Software system is R&D by ourselves ( Only 3 manufacturers in China have this power to do that) ,any software problem can solve online for you Once get your feedback .
2. PCB Width adjustment controlled by electric Button , just press the button , the rail will be automatic move to regulate the width of the pcb railway ,
3.The machines adopt stronger Panasonic Servo Motors Imported From Japan , the strongest Panasonic Servo motor is 750W , totally 3 pieces of Panasonic Servo Motors .
4.Machine robot Moving on grind treated high Precision screw ball rod -Brand NSK imported from Japan,Totally 3 pieces of Grind treated high Precision screw ball rod .
5.Computer System is so important , we use DFI World Class Industrial computer system , imported from Taiwan , the class top one brand of Industrial computer , together with the GreatWall Power driver,Philips Computer display .Software card R&D Chinese Famous University by Xi'an JiaoTong University , with 5 Years put into the market for trail and with 100% correction now
6.Wires for the pick and place machine take the flexible wires imported from Italy ,the lifetime of the wires on moving can take 10 years (calculate working 18 hours a day )
7..In order to keep the air pressure more stable , we install 3 sets of Vacuum pumps to increase the precision of the machine .The Negative pressure will blow down the components when the components just touch the board .
8,The Negative air Pressure display switches Brand Kita ,imported from TaiWan with higher precision and correction .
9.The feeders Position can be adjusted when needed for different shapes of components.The machines normal Maximum can take 12pieces 8mm feeders ,if you need can make for 20 pieces .
the Machine is excellent for led tubes and flexible led strips , it is professional for all kinds of led lights including led bulbs , tube, strip lights , street lights , downlights ,panel lights , ceiling lights .
Packing in plywoodcase and film
We have sold our machines to many coutries, we can send our engineer to oversea to provide training and installation. We also can provide the whole solution for you! Not just one machine, but whole line machines!
