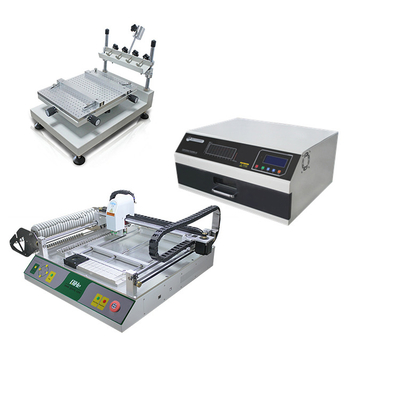

QIHE SMT PRODUCTION LINE
1. High precision printing machine:QH3040
| Item | QH3040 |
| Dimension | 540*370*350mm |
| Platform Size | 300*400mm |
| PCB Size | 250*400mm |
| Template Size | 270*470mm |
| Printing Speed | Manual control |
| PCB Thickness | 0-80mm |
| PCB Tuning Range | ±10mm |
| Platform Height | 220mm |
| Repeat Ability | ±0.01mm |
| Positioning Mode | Shape or benchmark hole |
| Weight | 23kg |
2. Pick and Place Machine
| Model | TVM802A |
| Max applicable PCB | 20*20mm~340*340mm |
| Max XY Moving rang | 395*450mm |
| Max Z Moving range | 12.5mm |
| Placement head quantity | 2 |
| Mounting speed without vision | 6500CPH |
| Mounting speed with vision | 5500CPH |
| Mounting accuracy | 0.025mm |
| Applicable component | 0402-5050. SOP. TQFP. QFN etc. |
| Component supply | Tape reel, Bulk, Tubular, Tray etc. |
| Vision system | 2 HDCCD Camera |
| Control scheme | Stepper high voltage drive, Z-axis reset detection |
| Feeder count & Tape width | 29 , 8mm=25pcs, 12mm=3pcs, 16mm=1pc |
| Pump | 1 silent brushless vacuum pump, Blowing pump |
| Leakage material detection | Vacuum |
| Power | 125W(average power) |
| Power supply | AC220V or AC110V |
| Machine size | L940*W640*H330mm |
| Package size | L1070*W770*H420mm |
| Volume | 0.38CBM |
| Net weight | 39kg |
| Gross weight | 60kg |
| Support PCB design software | Protl99/Altium Designer/Eagle/Pads/Allegre etc. |
TVM802A
| |
| |
| |
|
3. Reflow Oven: QR5040D
Model | QR-5040D |
Power supply | AC220V/110V |
Operating Frequency | 50~60HZ |
Rated power | 3600W |
Heating type | Infrared heating + hot air |
Effective weld Area | 500*400mm |
Drawer size | 550*430*30mm |
Language | Chinese and English |
Display modes | Graphics mode and Text mode |
Temperature curve | Preheat ,heating,soldering,heat preservation,cooling |
N.W. | 37.1kg |
G.W. | 40.1kg |
Dimensions | 675*600*312mm |
Package size | 730*640*390mm |
1. Q: How many nozzles do you supply? |
A: The TVM802 has two nozzle-heads, we supply 4 nozzles. The TVM925 has 4 nozzle-heads, we supply 6 nozzles. The QM41 has 4 nozzle-heads, we supply 8 nozzles. |
2. Q: Which language is the software? Do you provide software updates? |
A: English or Chinese. Free to upgrade software for lifetime. |
3. Q: This is the first time I use this kind of machine, is it easy to operate? |
A: Yes. There are English manual and guide video that show you how to use machine. If there is any doubt in the process of operating the machine, please feel free contact us. We also provide overseas on-site service. |
4. Q: Can we customize the machine? |
| A: Of course. All of our machines can be customized. |
5. How about the warranty? |
A: We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period. |
